Description
Temperature sensor with special sanitary flange connection Clamp type suitable for measurement in food and pharmaceutical industry. It has National Institute of Hygiene (PZH) attestation.
Files
Catalog card
Contact with a consultant
Telephone: +48 (18) 330 10 06
Fax: +48 (18) 330 10 04
E-mail: [email protected]
-40÷200ºC RTD
Specification
- sensing element: Pt100/Pt500/Pt1000 resistor
- process connection fl ange Clamp acc. to PN-ISO 2852

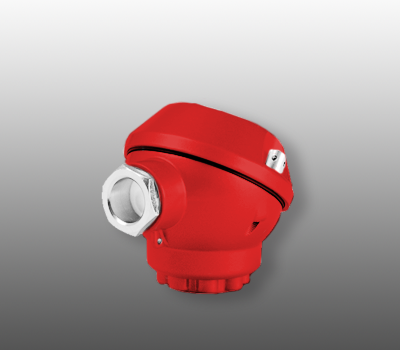

- connection head type MAA, BA; IP 54 -40÷100ºC
- MBEG, BEG – material: stainless steel 1.4541, IP65, -40÷100°C
- sheath material: acid-resistant steel 1.4541
- National Institute of Hygiene (PZH) attestation
Mounting
Connection heads

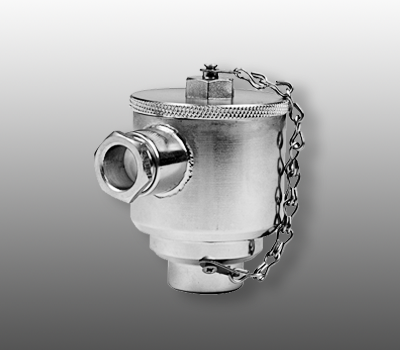

Connection head type BEG in standard.
Possibility to mount the connection head of a different type.

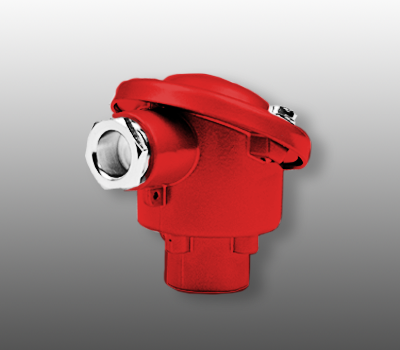

| BA | BEG | MA |
|
|
|
|
| MBEG |
|
|
For details see "connection heads”
Cooperating devices
Temperature sensors can cooperate with the devices registering parameters of the controlled process.
| Temperature Indicators | Controllers | Recorders |
|
|
|
|
For details see: “indicators”, “controllers”, “data loggers”
Additional accessories
Some applications require the use of additional accessories suitable for their individual requirements.

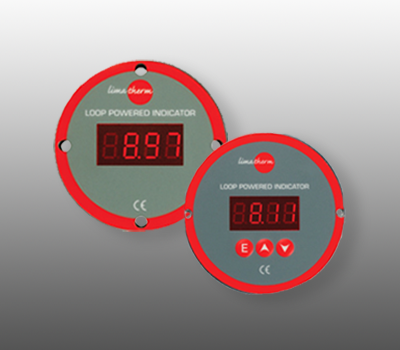

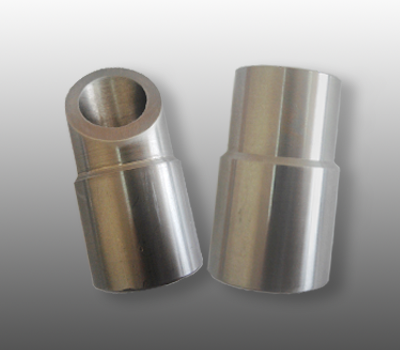

| Transmitters | Welding adapters | Displays |
|
|
|
|

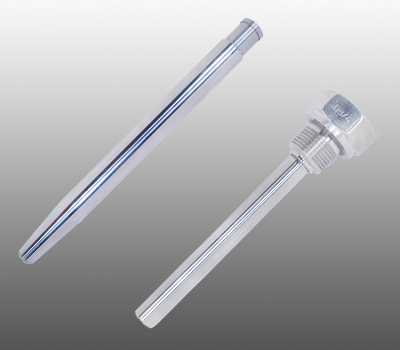

| Plugs and Sockets | Compensation Cables | Protection Tubes |
|
|
|
|
For details see: “transmitters”, "welding adapters", "displays", "plug and sockets", "compensation cables", "protection tubes"
