Description

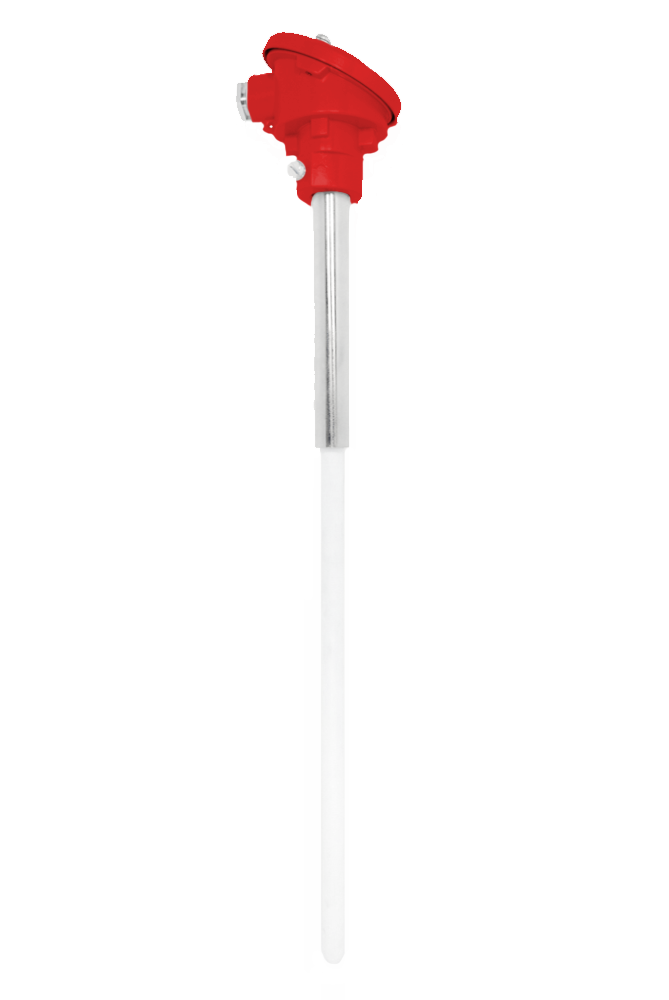

Temperature sensor suitable for measurement of aggressive media, especially in petrochemical and glass industry.

Files

Contact with a consultant

Telephone: +48 (18) 330 10 06

Fax: +48 (18) 330 10 04

E-mail: [email protected]

Do you have a question?
General Connection heads Compatible devices Additional accessories Contact form

Temperatura range

  • 0÷1600ºC             R, S
  • 600÷1700ºC         B



Specification

  • sensing element: R, S, B thermocouple
  • ceramic protection tube: monocrystal Al2O399,99%
  • connection head type BA, IP54, -40÷100ºC
  • sheath material: acid-resistant steel 1.4541



Mounting



Connection heads

Connection head type BA in standard.
Possibility to mount the connection head of a different type.

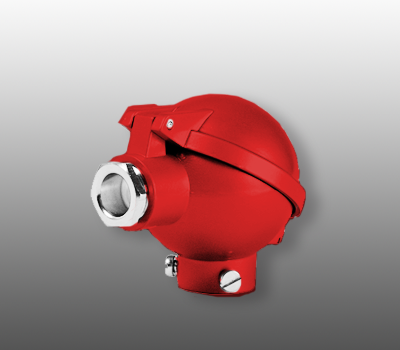

BA BEG NAA

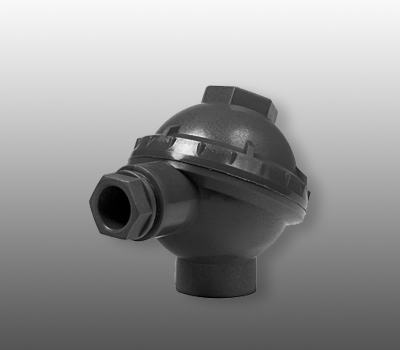

NS DANAWwin DANAW


For details see: "connection heads

Cooperating devices

Temperature sensors can cooperate with the devices registering parameters of the controlled process.

Temperature Indicators Controllers Recorders


For details see: indicators,controllers, “data loggers”

Additional accessories

Some applications require the use of additional accessories suitable for their individual requirements.

Transmitters Welding adapters Displays

Plugs and Sockets Compensation Cables Protection Tubes


For details see: transmitters, "welding adapters", "displays", "plug and sockets", "compensation cables", "protection tubes"
