Description

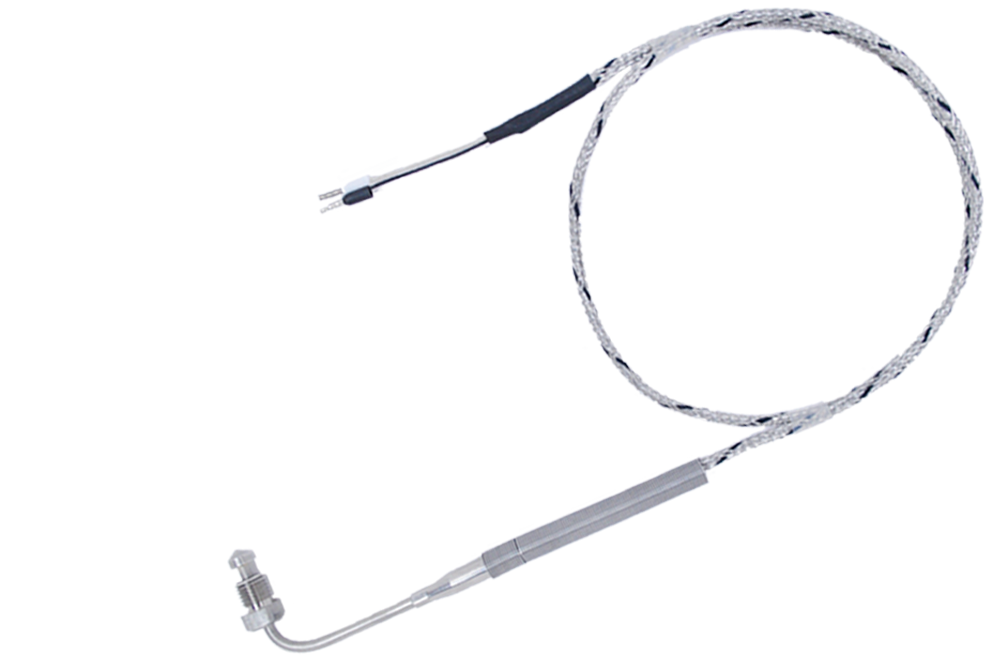

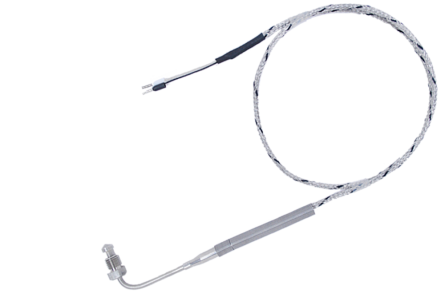

Sensor applied for temperature measurement of movable and exposed to vibrationparts of machines and devices.

Files

Contact with a consultant

Telephone: +48 (18) 330 10 06

Fax: +48 (18) 330 10 04

E-mail: [email protected]

Do you have a question?
General Cooperating devices Cables Additional accessories Contact form

Temperature range

  • -40÷600ºC        K, J



Specification

  • mineral insulated thermocouple (J), material: stainless steel 1.4541
  • mineral insulated thermocouple (K), material: Inconel 600
  • connector and tip material: stainless steel 1.4541

Temperature sensors can cooperate with the devices registering parameters of the controlled process.

Normally, sensor is made with fiberglass insulated lead wire and metallic braid.

There is a possibility to use lead wire of different type.

Some applications require the use of additional accessories suitable for their individual requirements.
