Description

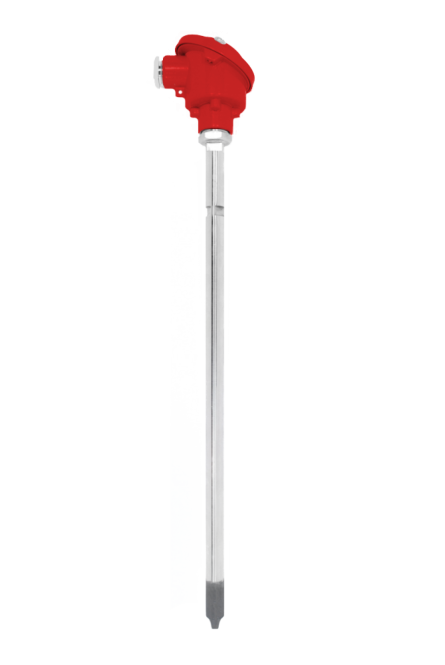

Temperature sensor adequate for mounting in a door of rubber mixer, suitable for measurement of rubber mix. Special narrowed tip enhances speed of sensor reaction to temperature change. Sensor tip is additionally covered with a protective layer that increases abrasion resistance. Inside the thermowell a flexible, mineral insulated measuring insert is included. It can be replaced without the need to disassemble the whole sensor.
Files
Catalog card
Contact with a consultant
Telephone: +48 (18) 330 10 06
Fax: +48 (18) 330 10 04
E-mail: [email protected]
Temperatura range
- -40÷300ºC TC
Specification
- sensing element: Pt100/Pt500/Pt1000 resistor or J, K, N, T thermocouple
- process connection with G1/2 or M20x1,5 thread
- connection head type BA IP55, - 40÷100ºC
- sheath material: acid-resistant steel 1.4541
- temperature transmitter can be mounted in a connection head
- measuring insert: pipe or mineral insulated version
Mounting
Connection head type BA in standard.
Possibility to mount the connection head of a different type.
Temperature sensors can cooperate with the devices registering parameters of the controlled process.
Some applications require the use of additional accessories suitable for their individual requirements.
