Description

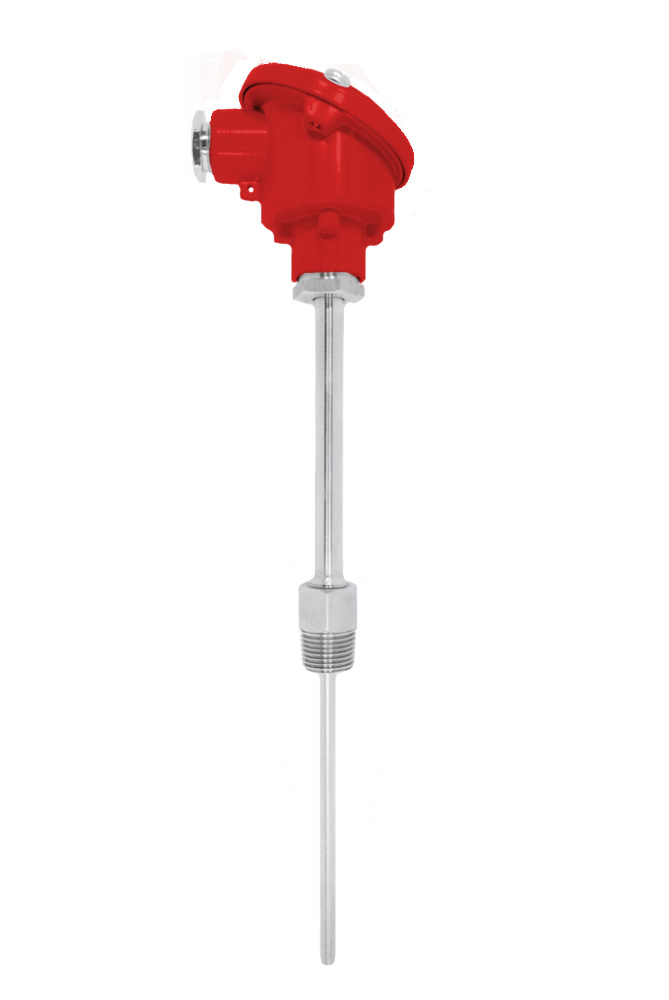

Sensor without thermowell but with a threaded process connection that enables sensor mounting in the thermowell placed on the object. An adequate sheath of the replaceable measuring insert determines product suitability for specific applications.

Files

Contact with a consultant

Telephone: +48 (18) 330 10 06

Fax: +48 (18) 330 10 04

E-mail: [email protected]

Do you have a question?
General Connection heads Cooperating devices Additional accessories Contact form

Temperatura range

  • -200÷600ºC         RTD
  • -40÷600ºC           TC



Specification

  • sensing element: Pt100/Pt500/Pt1000 resistor or J, K, N, T thermocouple
  • process connection with G1/2 or M20x1,5 thread
  • connection head type BA IP55, - 40÷100ºC
  • sheath material: acid-resistant steel 1.4541
  •  temperature transmitter can be mounted in a connection head
  • measuring insert: pipe or mineral insulated version



Mounting



Connection head type BA in standard.

Possibility to mount the connection head of a different type.

Temperature sensors can cooperate with the devices registering parameters of the controlled process.

Some applications require the use of additional accessories suitable for their individual requirements.
