Description

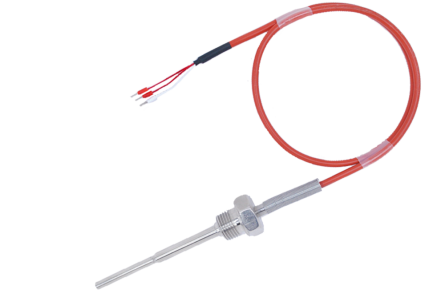

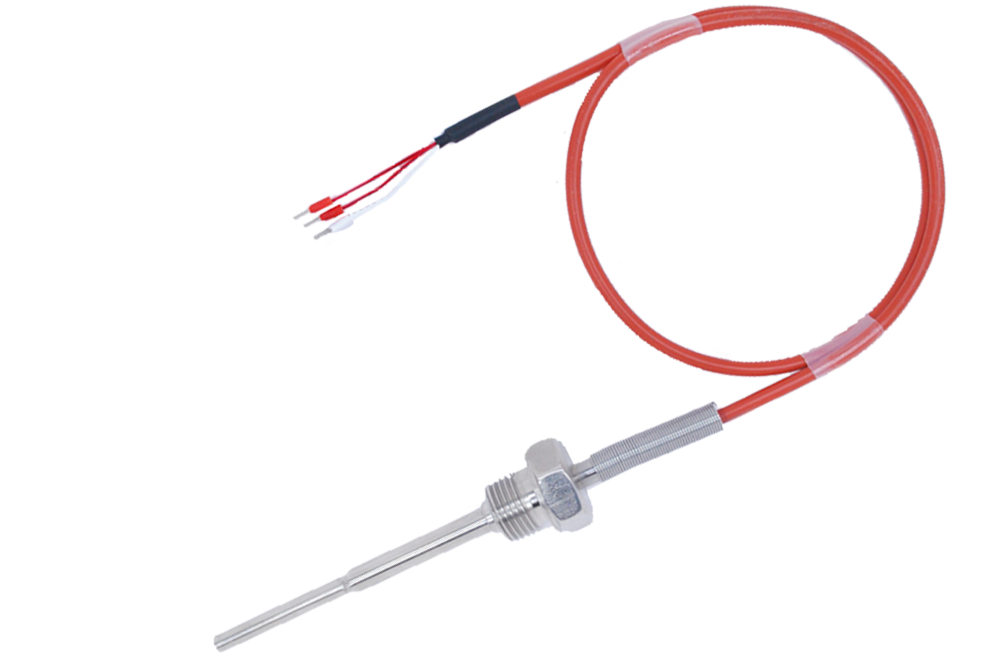

Sensor with narrowed sheath applied for temperature measurement of liquid and gaseous media.Narrowed tip enables quick reaction to temperature change. Straight and solid construction is suitable for various applications.

Files

Contact with a consultant

Telephone: +48 (18) 330 10 06

Fax: +48 (18) 330 10 04

E-mail: [email protected]

Do you have a question?
General Cooperating devices Cables Additional accessories Contact form

Temperature range

  • -50÷180ºC        Pt100
  • -50÷400ºC        Pt100



Specification

  • stheath threaded
  • Cu wire resistance ~0,14 Ω/m = ~0,36°C
  • material: stainless steel 1.4541



Temperature sensors can cooperate with the devices registering parameters of the controlled process.

Normally, sensor is made with fiberglass insulated lead wire and metallic braid.

There is a possibility to use lead wire of different type.

Some applications require the use of additional accessories suitable for their individual requirements.

Contact form

Required field
Required field
Required field
Required field
x

Generate the code by selecting the parameters below

Code:

Sensing element

Thermowel lenght

Thermowel diameter

Lead wire insulation

Lead wire length

RTD connection

RTD class

thread dimension
