Description

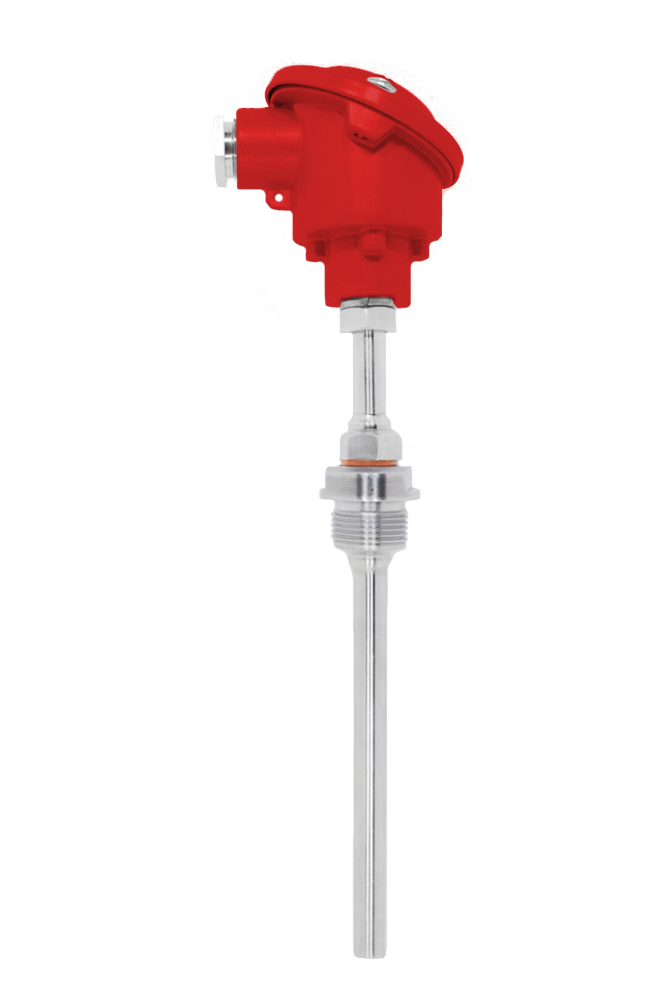

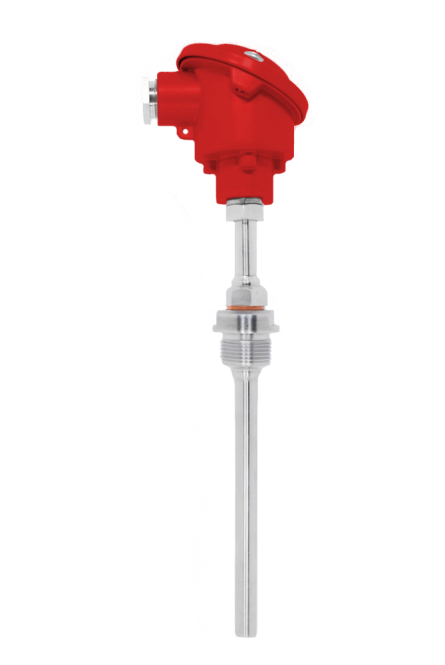

Temperature sensor suitable for measurement of liquid and gaseous media. Tight connection of the sensor and thermowell prevents leakage of installation and enables adjustment to the thickness of insulation layer. This sensor has a spring-loaded replaceable measuring insert. Adequate for various applications, mainly on ships and vessels.
Files
Catalog card
Contact with a consultant
Telephone: +48 (18) 330 10 06
Fax: +48 (18) 330 10 04
E-mail: [email protected]
General
Contact form
Temperatura range
- -50÷550ºC RTD
- -50÷150ºC Ni100
Specification
- sensing element: Pt100/Pt500/Pt1000n Ni100/Ni1000
- process connection with G1/2 or M20x1,5 thread
- connection head type BA IP55, - 40÷100ºC
- sheath material: acid-resistant steel 1.4541
Mounting
