Description

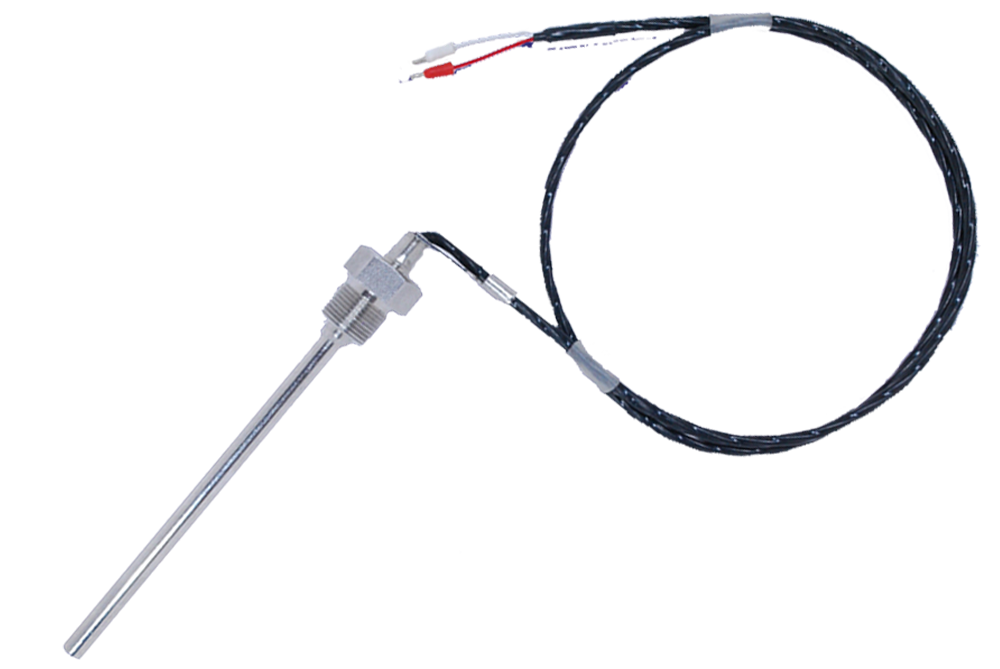

Temperature sensor suitable for measurement in district heating substations. Applicable for temperature measurement of liquid and gaseous media in high pressure conditions. This sensor consists of sensing element placed in the thin-walled acid-resistant sheath with connector and flexible lead wire. Temperature sensor has ATEX approval for application in hazardous area: II 1/2G Ex ia IIC T6 II 1/2D Ex ia IIIC T85°C

Files

Contact with a consultant

Telephone: +48 (18) 330 10 06

Fax: +48 (18) 330 10 04

E-mail: [email protected]

Do you have a question?
General Compatible devices Cables Additional accessories Contact form

Temperatura range

  • -50÷400ºC        Pt100
  • -40÷400ºC        J, K, N
  • -40÷350ºC        T



Specification

  • welded threaded connector
  • thermocouple sensor with insulated hot junction
  • sheath material:stainless steel 1.4541
  • Exi acc. to ATEX

Cooperating devices

Temperature sensors can cooperate with the devices registering parameters of the controlled process.

Temperature Indicators Controllers Recorders


For details see:indicators, controllers, “data loggers”

Connecting cables

Normally, sensor is made with fiberglass insulated lead wire and metallic braid.
There is a possibility to use lead wire of different type.

Silicone insulated wire Fiberglass insulated wire with braid Silicone insulated wire

PVC insulated wire with steel armour Silicone insulated wire with inner shield Teflon insulated wire


For details see: "compensation cables"

Additional accessories

Some applications require the use of additional accessories suitable for their individual requirements.

Transmitters heads Compensations cable Plugs and Sockets


For details see: transmitters, "plug and sockets", "compensation cables"
