Description

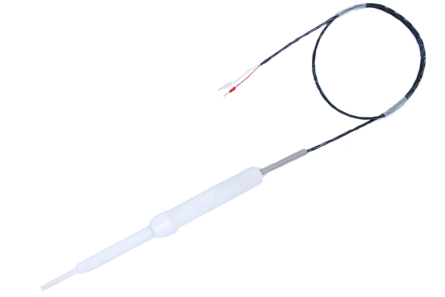

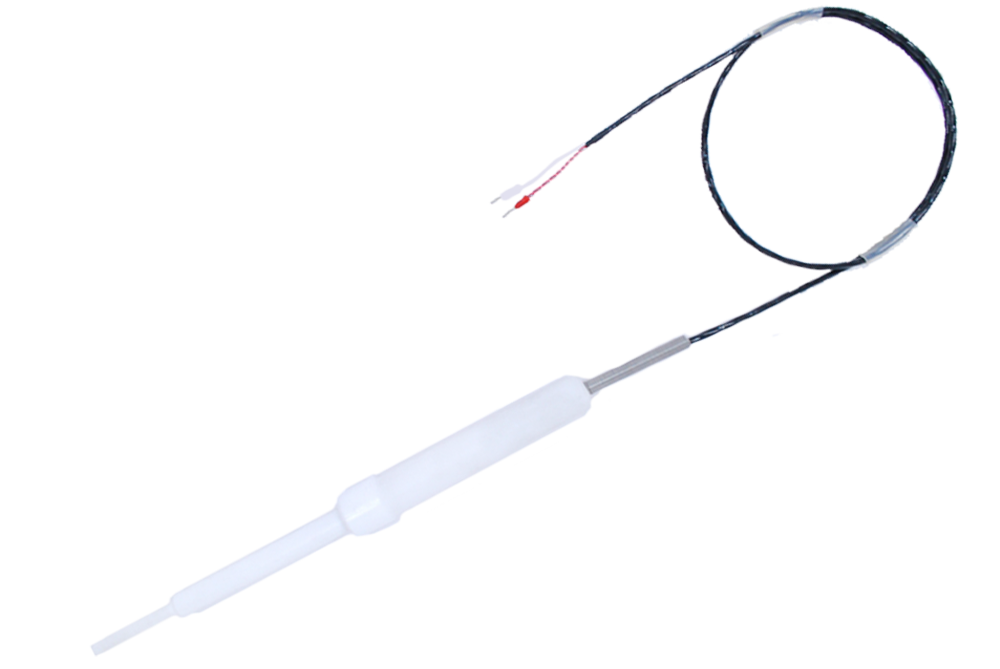

Made of Teflon, temperature sensor with handgrip suitable for ad hoc control of aggressive media temperature (e.g. battery acid). It is equipped with miniature plug that enables quick and easy connection with portable temperature meters (e.g. TES1317)

Files

Contact with a consultant

Telephone: 18 330 10 05

Fax: 18 330 10 04

E-mail:

Do you have a question?
General Compatible devices Cables Additional accessories Contact form

Temperatura range

  • -50÷250ºC      RTD



Specification

  • sheath and hand grip material: teflon
  • miniature plug type SMPW (2-pin) or MTP (3-pin)
  • stranded Cu wire 2 or 4x0,22 mm2 with double tefl on insulation


Cooperating devices

Temperature sensors can cooperate with the devices registering parameters of the controlled process.

Temperature Indicators Controllers Recorders


For details see:indicators, controllers, “data loggers”

Connecting cables

Normally, sensor is made with fiberglass insulated lead wire and metallic braid.
There is a possibility to use lead wire of different type.

Silicone insulated wire Fiberglass insulated wire with braid Silicone insulated wire

PVC insulated wire with steel armour Silicone insulated wire with inner shield Teflon insulated wire


For details see: "compensation cables"

Additional accessories

Some applications require the use of additional accessories suitable for their individual requirements.

Transmitters heads Compensations cable Plugs and Sockets


For details see: transmitters, "plug and sockets", "compensation cables"

Contact form

Required field
Required field
Required field
Required field
x

Generate the code by selecting the parameters below

Code:

Thermowel lenght

RTD class

RTD connection

Lead wire length

Additional accessories

clear my selections generate code
