Description

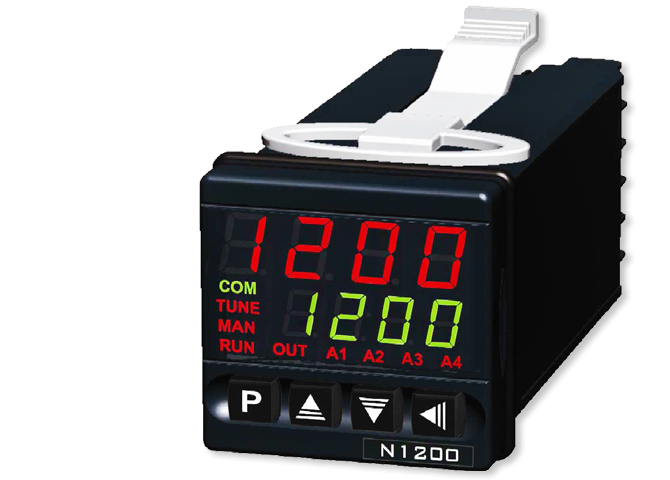

Very fast PID controller suitable for complicated industrial processes. Optionally, RS-485 communication, digital input/output and heater failure detection are possible. It has a universal input suitable for most popular thermocouple and Pt100 sensors and analogue inputs, including 4÷20mA, 0÷10V, 0÷5V. Low or standard 230V power supply can be selected. Up to 3 outputs programmable as alarm or control, digital input/output are available, 5th output is universal, including SSR 14V (for control of three-phase semiconductor relays  or 4÷20mA (control or retransmission)), or digital input/output.

Files

Contact with a consultant

Telephone: 18 330 10 22

Fax: 18 330 10 04

E-mail:

Do you have a question?
General Compatible devices Additional accessories Contact form

Characteristic

  • programmable temperature controller for demanding applications
  • dual 4-digit LED display
  • PID control; ON/OFF control
  • auto-tuning
  • processing 55 bits of the input signal
  • front panel: IP65



Specifications

  • universal input: TC/RTD/4-20mA
  • output: 2xrelay
  • third-purpose programmable output 4-20mA, SSR 14V
  • power supply: 230V AC, 24V DC / AC ±10%
  • dimensions: 48 × 48 × 110; cut-out 45,5 × 45,5 mm
  • additional features: interface RS-485
                                 digital input/output
                                 heater break detection
