Description

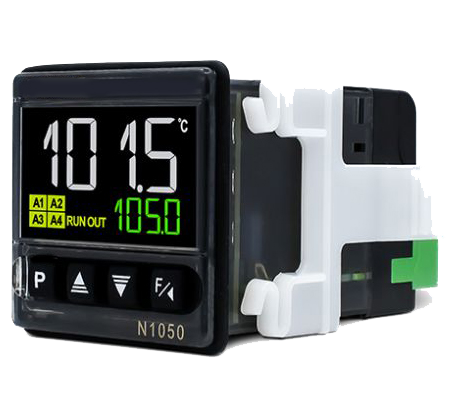

Controller LIM N1050 series is an advanced device equipped with a high-quality LCD display. It has the ability to auto-tune PID, PWM control mode by impulse or relay. It has an integrated RS485 Modbus interface. Thanks to the detachable connector, we can easily manage the controller .

Files

Contact with a consultant

Telephone: +48 (18) 330 10 06

Fax: +48 (18) 330 10 04

E-mail: [email protected]

Do you have a question?
General Compatibility device Additional accessories Contact form

Characteristic

  • control PID, ON/OFF mode
  • double 4-digit display
  • output: relay, SSR, 0÷20 mA, 4÷20 mA
  • heating function - ramp and heating in time
  • heating function - ramping: 1x4 segments
  • sensor damage detection
  • sensor damage detection
  • function LBD (failure of control system detection)
  • USB connector
  • front panel; protection: IP65

Technical data

  • uniwersalne output : TC, RTD
  • output: 3x relay, SSR
  • power supply: (100 ÷ 240) V AC/DC (±10%)   |   (12 ÷ 24) V AC/DC (±10%)   |   6 VA
  • dimension: 48×48×80; hole: 46x46 mm
  • additional functions: interface RS485
