Description

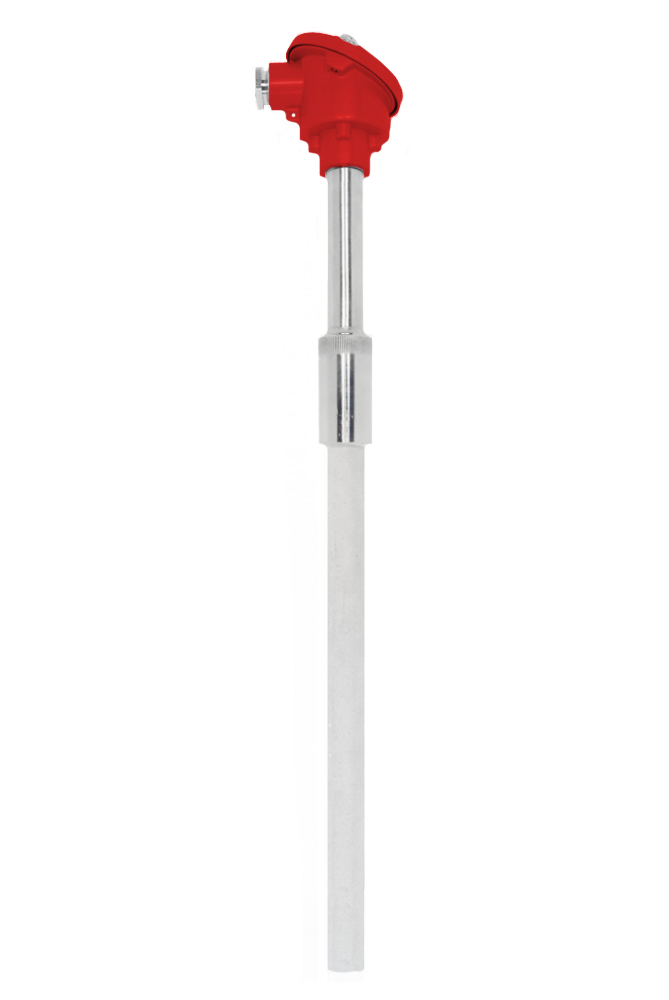

Temperature sensor connected with adequate devices enables temperature measurement, control and recording of liquid alloys of non-ferrous metals. It has special ceramic sheath resistant to corrosive action of metals and their alloys.
Files
Catalog card
Temperatura range
- 0÷700ºC TC
- 0÷1200ºC TC
Specification
- sensing element: J, K, N, T thermocouple
- ceramics: HEXOLOY, REFRAX or SYALON
- connection head type BA, IP54, -40÷100ºC
- fitting assembly and extension pipe
- thermal shock resistance
Mounting
Connection heads
Connection head type BA in standard.
Possibility to mount the connection head of a different type.
| BA | BEG | NAA |
|
|
|
|
| NS | DANAWwin | DANAW |
|
|
|
|
For details see: "connection heads”
Cooperating devices
Temperature sensors can cooperate with the devices registering parameters of the controlled process.
| Temperature Indicators | Controllers | Recorders |
|
|
|
|
For details see: “indicators”, “controllers”, “data loggers”
Additional accessories
Some applications require the use of additional accessories suitable for their individual requirements.
| Transmitters | Welding adapters | Displays |
|
|
|
|
| Plugs and Sockets | Compensation Cables | Protection Tubes |
|
|
|
|
For details see: “transmitters”, "welding adapters", "displays", "plug and sockets", "compensation cables", "protection tubes"
